Miter Band Saws for Angle Cutting
A miter band saw rotates the saw frame so you can cut tube, pipe and profiles at an angle without re-clamping. PCL miter saws swivel 0–45° (BS-300M to BS-400M) or 0–60° (BS-500M and up), and the AM versions add CNC length feeding with hydraulic angle rotation.
- 7 modelsmanual and CNC
- 0–60°angle range
- Ø600 mmmax at 90°
- Ø500 mmmax at 45°
Prices from USD 2,800 (EXW, standard configuration). See the price of each model; models marked "Ask for price" are quoted on request.
Specifications
Swipe the table sideways to see all columns.
| Model | Angle range | At 90° (mm) | At 45° (mm) | At 60° (mm) | Blade (mm) | Main motor (kW) | Weight (kg) | Feeding | Price (USD, EXW) |
|---|---|---|---|---|---|---|---|---|---|
| PCL BS-300M | 0–45° | Ø300 / 300 × 300 | Ø280 / 280 × 300 | Ø100 / 100 × 300 (option) | 4050 × 27 × 0.9 | 3 | 1,000 | Manual | USD 2,800 |
| PCL BS-350M | 0–45° | Ø350 / 350 × 350 | Ø300 / 300 × 350 | Ø120 / 120 × 350 (option) | 4500 × 34 × 1.1 | 3 | 1,100 | Manual | Ask for price |
| PCL BS-400M | 0–45° | Ø400 / 400 × 400 | Ø320 / 320 × 400 | Ø150 / 150 × 400 (option) | 5000 × 34 × 1.1 | 4 | 1,500 | Manual | USD 4,000 |

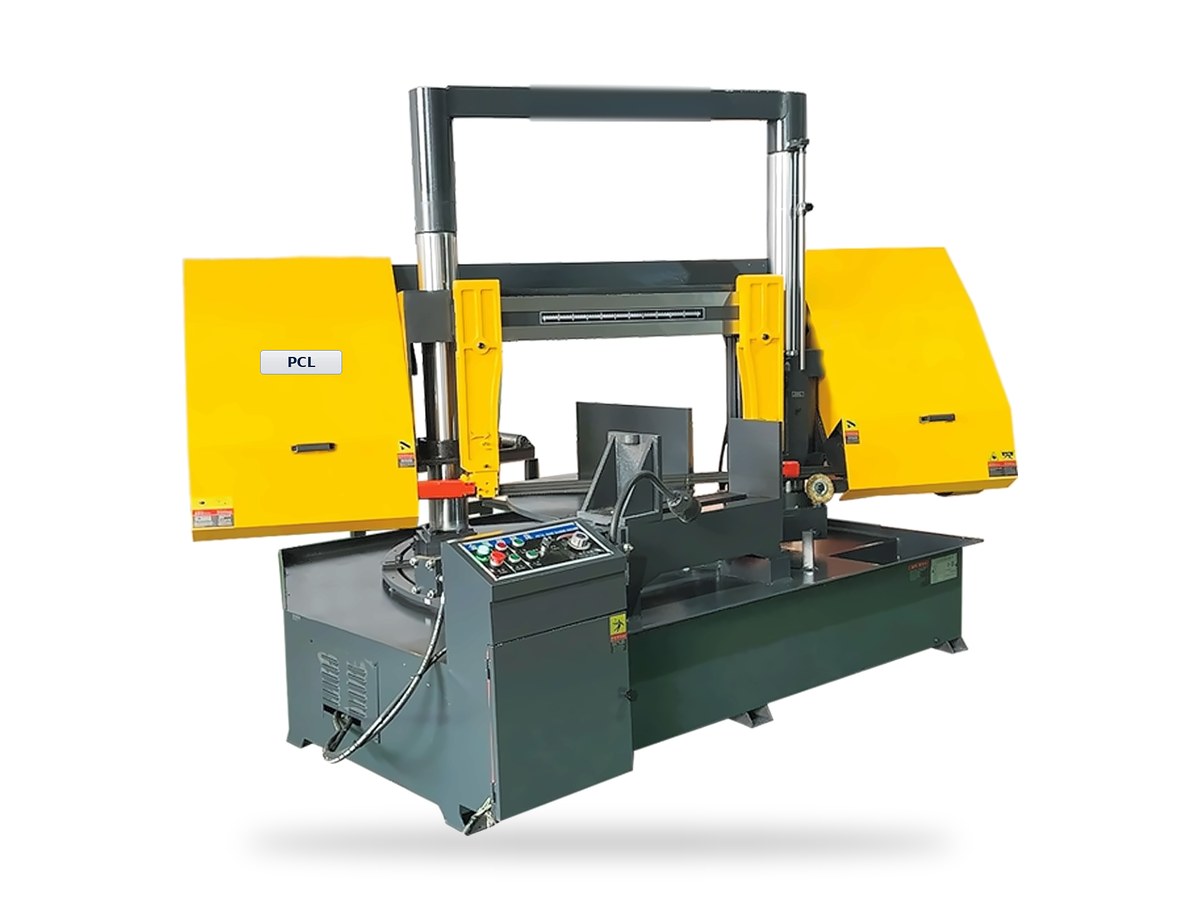

| PCL BS-500M | 0–60° | Ø500 / 500 × 500 | Ø400 / 400 × 500 | Ø200 / 200 × 500 | 6000 × 41 × 1.3 | 5.5 | 2,600 | Manual | Ask for price |
| PCL BS-600M | 0–60° | Ø600 / 600 × 600 | Ø480 / 480 × 600 | Ø260 / 260 × 600 | 6800 × 41 × 1.3 | 5.5 | 2,600 | Manual | Ask for price |
| PCL BS-400AM | 0–60° | Ø400 / 450 × 400 | Ø400 / 400 × 400 | Ø200 / 200 × 200 | 5400 × 41 × 1.3 | 4 | 2,800 | CNC, 500 mm ±0.2 mm | USD 5,000–5,500 |
| PCL BS-500AM | 0–60° | Ø500 / 550 × 500 | Ø500 / 500 × 500 | Ø280 / 280 × 500 | 6400 × 41 × 1.3 | 5.5 | 3,500 | CNC, 500 mm ±0.2 mm | USD 5,000–5,500 |
Capacities shown as round Ø / rectangle W × H. M = manual feeding, AM = CNC automatic feeding with hydraulic angle rotation. Prices are indicative EXW ranges in USD for the standard configuration. Options, voltage, packing and freight are quoted separately.
What to look for
Capacity at your angle
Capacity falls as the angle increases. Size the saw by your largest section at your steepest angle, not at 90°.
Angle range
0–45° covers most frames and handrails. Choose 0–60° for trusses and steep joints.
Manual or CNC feeding
M models suit mixed jobs. AM models feed 500 mm per stroke at ±0.2 mm and rotate the frame hydraulically for repeat batches.
Blade speed control
The AM models have 20–80 m/min inverter speed, useful when cutting both steel and aluminum.
Typical uses
Square-tube frames, gates and fences, handrails and balustrades, roof trusses, machine frames and furniture frames. For straight cuts in larger stock see the double-column band saws.
Popular models
Get a model recommendation and quote
Send us the material grade, the largest section you cut, and how many cuts you need per shift. We reply with the right miter saw model, the configuration, and a price delivered to your port.
Frequently asked questions
How much capacity do I lose at 45° and 60°?
It depends on the model. For example, the BS-500M cuts Ø500 mm round at 90°, Ø400 mm at 45° and Ø200 mm at 60°. Check the 45° and 60° columns against your largest angled section.
Which models cut up to 60°?
BS-500M, BS-600M, BS-400AM and BS-500AM swivel 0–60°. BS-300M, BS-350M and BS-400M swivel 0–45°, with a 60° option at reduced capacity.
How is the angle set?
On M models the angle is set by hand against a scale. On AM models the saw frame rotates hydraulically and the bar is fed by the CNC shuttle, so angled batches run with little handling.
Can I cut square tube for frames and handrails?
Yes, that is the main use: square and rectangular tube, pipe, channel and angle for frames, gates, handrails and trusses.
Is a miter band saw slower than a straight-cut saw?
Cutting time is similar for the same cross-section. Angled cuts are longer through the material, so allow more time per cut at 45° and 60°.
Related machines
Last updated 15 October 2026. Specifications are for standard configurations and can change with options; confirm on your quotation.
