small size laser cutting machine
SF series use High-precision moving system, used to cut small stainless, copper, alumimum, suitable in the advertisemnt industy，Small size fiber laser cutting machine, precision cutting, beyond expectations! Applicable to a variety of fine size workpiece cutting, easy to realize high-precision processing. Adopt advanced fiber laser technology, stable power, low energy consumption, energy saving and environmental protection. Intelligent control system, simple and easy to use, one-key operation, improve productivity. For different materials, multi-functional cutting, effectively meet your diverse needs.

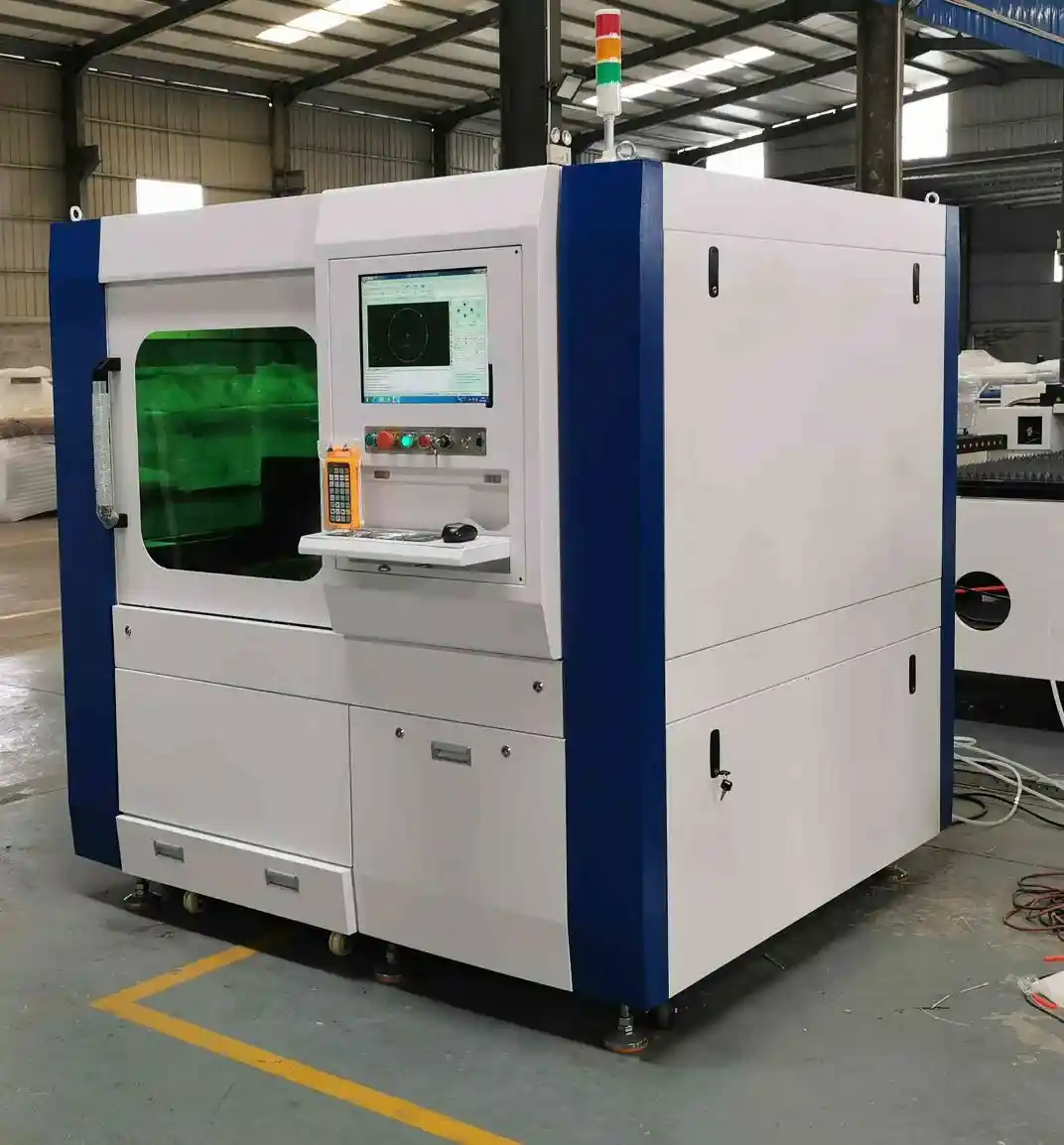

small laser metal cutting machine
Model | SF series small metal cutting machine |
Laser Type | Fiber Laser |
Laser Power | 1000w 1500w 2000w |
Laser Source | Raycus/JPT/Max |
Laser Technology | Germany Technology |
XYZ Working area | 1300*900/600*900mm |
Max. Cutting Speed | 30-50 Meters / Min (up to materials) |
Max. Location speed | 60m/min |
Laser wavelength | 1070nm |
Minimum line width | ≤0.1mm |
Location precision | ≤±0.05mm |
Re-location precision | ±0.02mm |
Max Acceleration | 0.8G |
Max. moving speed | 100m/min |
Supporting Format | Auto cad, Corel draw, PLT, DXF, BMP, AI, DST, DWG, etc |
Power demand | 3 PHASE AC 380V 50HZ/60HZ |
Cooling Way | Water Cooling |
Worktable max. load | 2000KGS |
Transmission Method | gantry type double rack servo drive |
Table-driven system | Japanese Imported Servo Motor & Driving System |
Focus Method | Following and Automatic Adjust Focus |
Control Method | Offline Movement Control |
Control software | Cypcut/Au3tech |
Small format fiber laser cutting machine has many advantages that make it an efficient cutting tool widely used in modern manufacturing. Here are some advantages of small format fiber laser cutting machine:
High precision: small format fiber laser cutting machine adopts fiber laser as the cutting light source, which has excellent beam quality and focusing ability, so it can achieve high precision cutting. It can cut fine size workpieces and keep the edges flat and precise.
High-speed cutting: the beam speed of fiber laser cutting machine is very fast, which makes it able to complete a large number of cutting tasks in a short time. High-speed cutting increases productivity and reduces production cycle time.
Non-contact cutting: Fiber laser cutting is a non-contact cutting technology, the beam does not touch the surface of the workpiece during the cutting process, which reduces wear and damage during cutting and extends the life of the cutting head.
Small heat-affected area: Fiber laser cutting machine produces a small heat-affected area, which reduces thermal deformation and discoloration of the material. This results in flat cutting edges and reduces the need for subsequent processing.
Automation and Intelligent: Small format fiber laser cutting machine is usually equipped with advanced CNC control system, which makes the cutting process automated and intelligent, easy to operate, reduces manual intervention and improves productivity.
Environmental protection: fiber laser cutting process does not require the use of cutting gas, there is no waste gas generated, in line with environmental requirements.
small size laser cutting machine is a high-precision cutting tools
the small size fiber laser cutting machine has obvious advantages in high precision, high speed cutting, flexibility, energy saving and environmental protection, etc. It is an indispensable and important equipment in modern manufacturing industry!
